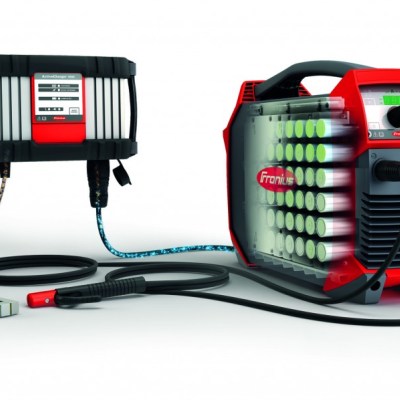

AccuPocket 150/400 Battery Welder

Repair-welding high up in the mountains, field erection jobs out in the country or welding work at exposed locations: until recently, jobs like these always involved costly and time-consuming preparations. Long mains supply leads or big, heavy 8 kVA generators are now no longer necessary. Because AccuPocket ushers in a new and unprecedented era of mobile welding.

Categories: ,

Description

Technical Information

Rated voltage of battery 52.8 V
Charging current (normal charge) 10 A
Charging current (quick charge) 18 A
Battery capacity 396 Wh
Battery type Lithium ion
Welding amperage range
Electrode-DC 10 – 140 A
TIG-DC 3 – 150 A
Reduced open-circuit voltage 15 V
IEC Ingress Protection rating IP 23
Type of cooling AF
Marks of conformity CE, S
Open-circuit voltage 90 V
Dimensions L x W x H 435 x 160 x 310 mm
(17.1” x 6.3” x 12.2”)
Welding amperage in hybrid mode (MMA rod-electrode welding):
40°C (104 °F) 18 % duty cycle 140 A
40°C (104 °F) 25 % duty cycle 100 A
40°C (104 °F) 100 % duty cycle 40 A
Welding amperage in hybrid mode (TIG welding):
40°C (104°F) 25 % duty cycle 150 A
40°C (104°F) 50 % duty cycle 100 A
40°C (104°F) 100 % duty cycle 65 A
